Coordinates and Positioning in SVG

In this chapter, we will learn how the coordinate system works in SVG and how to position elements precisely. Understanding the coordinate system is fundamental for creating organized and controlled graphics, especially when working with complex graphics or animations.

The Coordinate System in SVG

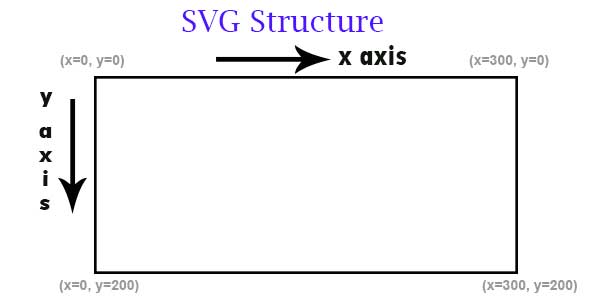

The coordinate system in SVG uses an X-axis and a Y-axis, similar to the Cartesian coordinate system. By default, the origin (0,0) is located at the top-left corner of the SVG area. This means that the x value increases to the right, and the y value increases downward.

html

"In this SVG example, a 200 by 200 pixel area with a black border is created. Inside the SVG area, we have two circles: one at position 50, 50 and another at position 150, 150. The first circle is blue, and the second is green."

The previous code defines two circles in different positions, illustrating how the cx and cy coordinates work within the SVG space.

Units and Scaling in SVG

SVG allows different types of units, such as pixels (px), points (pt), and percentage (%). The choice of units can affect how the graphic scales on different screens or when the SVG area is enlarged.

html

"This SVG code creates an orange rectangle. Its position is 10, 10 from the top-left corner of the SVG. The width of the rectangle is 80% of the SVG area, and its height is 180 pixels."

In this case, the rectangle will adjust to the width of the container where the SVG is included, being flexible and adapting to the available size.

ViewBox: Controlling the Viewing Area

The viewBox attribute is one of the most important in SVG for defining a "window" through which the SVG content is observed. viewBox allows us to scale and adjust the content independently of the physical size of the SVG.

The syntax of viewBox is:

html

min-x and min-y: Coordinates of the top-left point of the visible area.
width and height: Size of the view.

Example with `viewBox`

html

"In this example, we create an SVG with a size of 200 by 100 pixels. However, the viewBox is set to 0, 0, 100, 50, meaning the 20-pixel radius circle is adjusted to fit the defined view. The circle is centered at position 50, 25."

This viewBox of 0 0 100 50 establishes a view that only shows a portion of the total area, allowing the circle to scale based on that reduced space.

Adjusting the Origin and Coordinate Axes

In SVG, it is possible to modify the origin and orient the axes using transformations. This is especially useful when creating complex graphics or animations that require a change in the coordinate system reference.

Example of Transformation with `translate`

html

"Here we create a rectangle inside a group or

In this example, the <g> group applies a translate transformation that moves the rectangle to a new position. This allows adjusting the position of elements relative to a specific point within the SVG area.

Conclusion

The coordinate system in SVG is a fundamental aspect for designing precision graphics. From the use of units and scaling to the control of the view with viewBox, these concepts are essential for any developer working with SVG on the web. In the next chapter, we will explore how to apply styles in SVG with CSS, allowing us to enrich the visual appearance of our graphics.

See you in the next chapter!
